Custom Galvanized Transport Frame for Wind Turbine Blade

| Product Description

The wind turbine blade transportation frame is manufactured using high-strength steel (such as the S355 series steel), and is primarily shaped through numerical control cutting and welding processes to ensure structural strength and dimensional accuracy. To address the length of the blades and their asymmetric weight distribution, the frame features a box-section design, with weld joints inspected through Ultrasonic Testing (UT) to reliably support the weight of the blades. The surface is protected against corrosion using a hot-dip galvanizing process, which significantly enhances salt spray corrosion resistance compared to traditional paint, making it suitable for the high humidity and salt spray environments encountered during maritime transport. Key contact areas are equipped with polyurethane cushion pads, combining the dual protection of the galvanized layer and the elastic material to effectively reduce the risk of micro-cracks on the blade surface, thus meeting the relevant transportation standards.

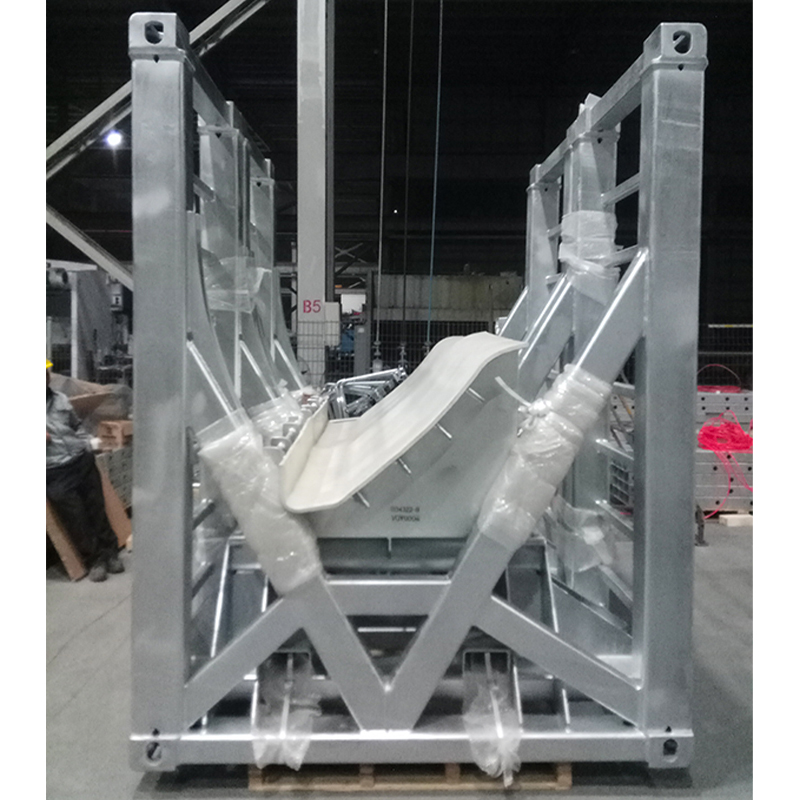

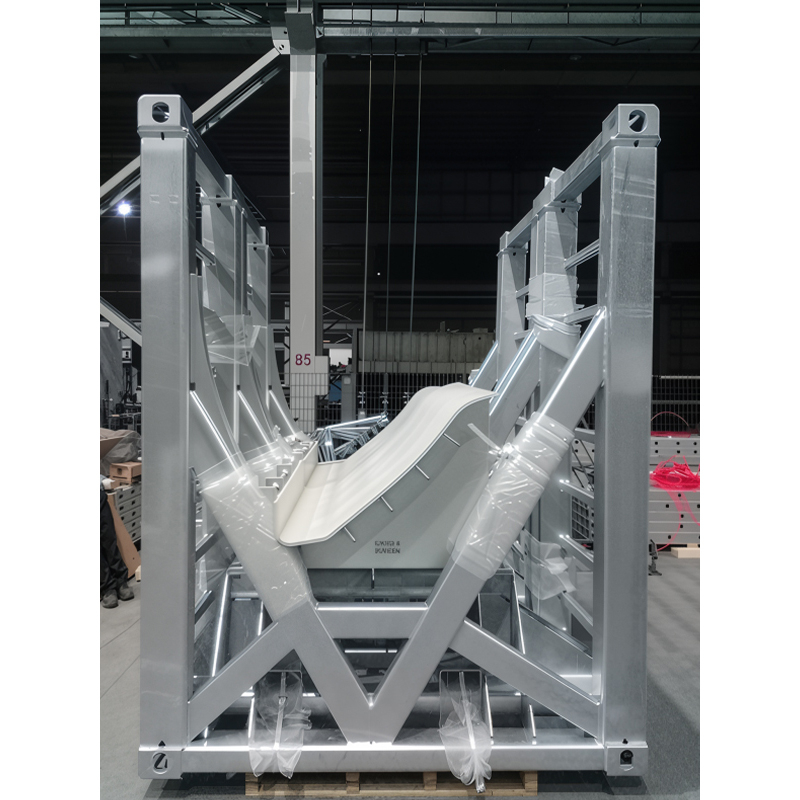

| Product Display
